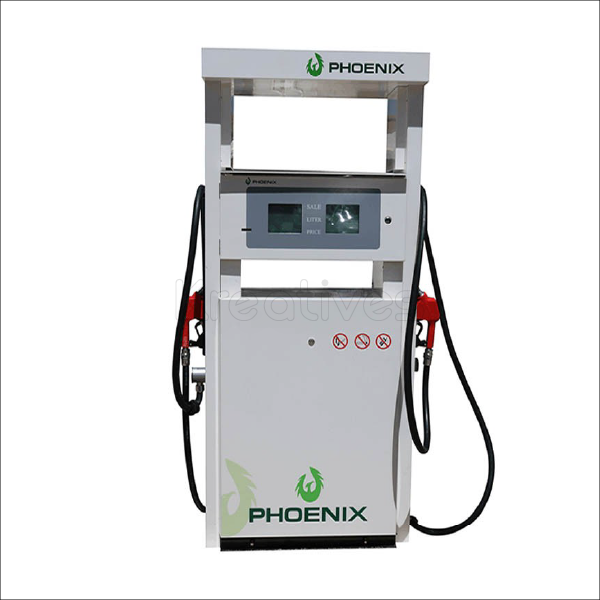

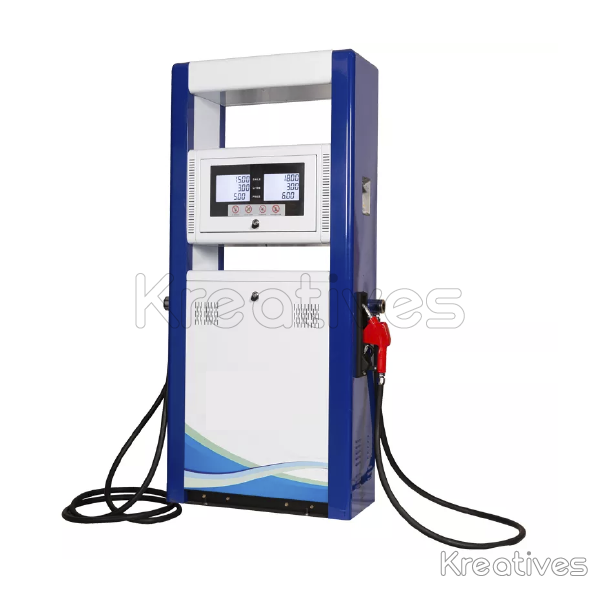

Phoenix Two Nozzle Dual Fuel Pump for Fuel Station - Suction pump Type

• US Phoenix Fuel Pump (Twin) 2 hose,
• 2flow-meter,
• 2 oil product,
•  The dispenser can fuel 2 cars at the same time. Power:
• Motor Power:2* 0.75KW/1HP
• Voltage:220v-240v, 50Hz
• Flameproof& Explosive proof motor.
• Pumping Unit: Phoenix Powerful gear pump system, positive displacement.
• Equipped with suction filter. (removable filter with 200-micron mesh)
• Standard Flow rate: 40 -50LPM
• Max Vertical suction lift 4.5 Meters
• Max horizontal pull: 40 Meters
• Metering unit accuracy: 0.2% Accurate delivery at any pressure and delivery speed.
• 10M liters ex-factory test Register Unit: Microprocessor with 3 displays, (Sales Amount, Sales Volume, Unit Price)
•  Large LED display both sides with backlight Canopy:
• Panels and enclosure are powder coated with white color scheme for excellent weather / corrosion resistance.
• Good finish with long life span for more than 10 years.
• 2 hose/ 2flow-meter, 1 oil product,
• The dispenser can fuel 2 cars at the same time.
• Power:
• Motor Power:1* 0.75KW/1HP,
• Voltage:220v-240v, 50Hz
• Flameproof& Explosive proof motor.
• Pumping Unit: Phoenix Powerful gear pump system, positive displacement.
• Equipped with suction filter. (removable filter with 200 mi-cron mesh) Standard Flow rate : 40 -50LPM
• Max Vertical suction lift 4.5 Meters
• Max horizontal pull: 40 Meters
• Metering unit accuracy: 0.2%
• Accurate delivery at any pressure and delivery speed.
• 10M litres ex-factory test
• Register Unit: Microprocessor with 3 display,( Sales Amount, Sales Volume, Unite Price) Large display both sides with back-light
• Canopy: panels and enclosure are powder coated with white color scheme for
• excellent weather / corrosion resistance.
• Good finish with long life span for more than 10 years.
• • Countrywide delivery
• • 24Months Warranty
